Multi-Instance: Schedules

Overview​

  • There are three types of Mulit Instance Schedules
    • Property Schedules
    • Machine Group Schedules
    • Named Instances Schedules

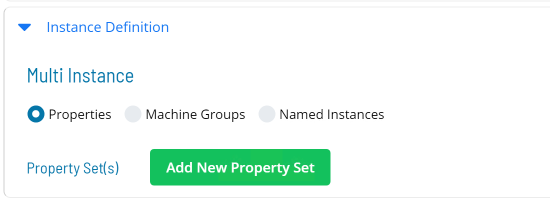

Property Schedules​

  • These are the default selection when Mult Instance is selected.
  • Multiple Property Set are defined at the Master Schedule level
  • Each containing the same set of Property Names with different Values assigned.

  • Each Schedule is unquily named during the build by appending an underscore and value of the first Property defined.
    • ScheduleName_FirstPropertyValue

Utilizing Properties​

  • Schedule Instance Property are called in the Command Line with SI. before the property name
    • [[SI.PropertyName]]

  • The Daily Schedule shows each unique Schedule Instance Property instead of a String of Properties

Enterprise Manager​

Details

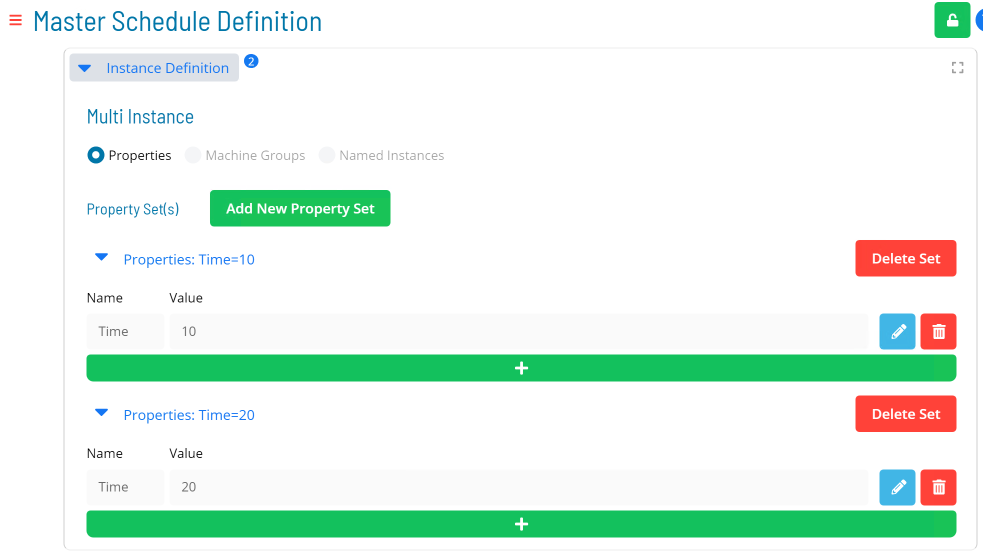

Multi-Instance Schedules - Instance Properties​

  • Each parameter line will have its own copy of the Schedule
  • In this case, there are two Instance Properties defined:

TIME=10

TIME=20

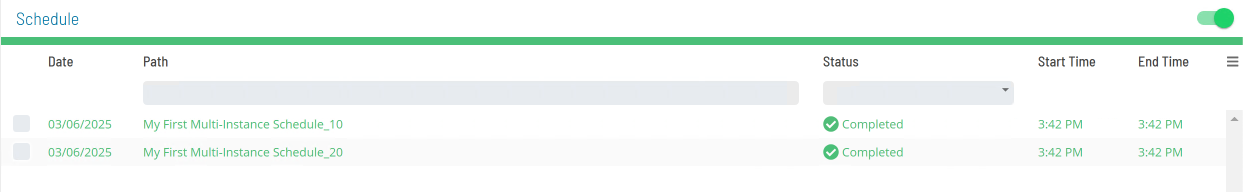

  • Naming Scheme: Schedule Name followed by an underscore and the first Property's value
Example:​

ScheduleName_FirstPropertyValue

  • My First Multi Instance Schedule_10

  • My First Multi Instance Schedule_20

Calling Properties​

  • Tokenization allows a Schedule Instance Property to be called in the Command Line when prefixed with SI.
Example:​

[[SI.PropertyName]]

[[SI.TIME]]
