Define a Kubernetes job task
Theme: Configure
Who Is It For? Automation Engineer
What is it?
A Kubernetes job task tells OpCon what container image to run, what command and arguments to pass to it, how many pods to spin up, and what resource limits to apply. When OpCon runs the job, the connector submits these parameters to the Kubernetes cluster.
- Use this procedure when you need to schedule a containerized workload through OpCon
- Use this procedure when configuring resource constraints for jobs that run in a shared Kubernetes cluster
The Kubernetes Connector supports the following task type:
| Task type | Description |
|---|---|
| Job | Runs a command within a container in a Kubernetes cluster |
Define a Job task
Prerequisite: The Kubernetes agent must be defined and communicating before a job task can be submitted. See Agent definition.
To define a Kubernetes job task, complete the following steps:
-
In Solution Manager, select Library.
-
From the Administration menu, select Master Jobs.
-
Select +Add.
-
In the Schedule field, select the schedule name from the list.
-
In the Name field, enter a unique name for the job within the schedule.
-
In the Job Type field, select Kubernetes Job from the list.
-
In the Task Type field, select Job from the list.
-
Select the Task Details button.
-
In the Integration Selection section, select the Kubernetes agent previously defined.
-

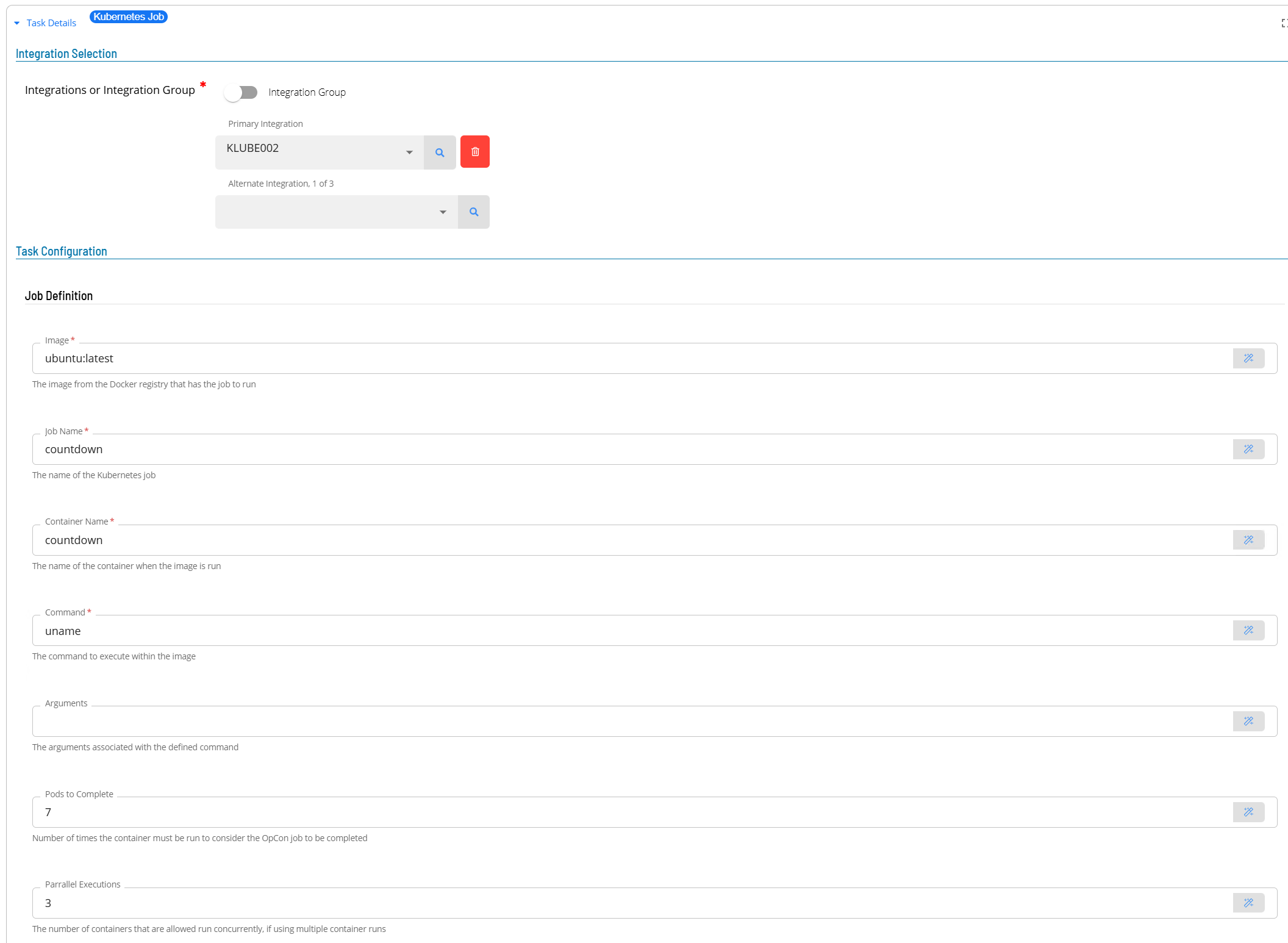

In the Task Configuration section, complete the following fields:
Field Description Image The Docker Registry image that provides the runtime environment for the command Name Space The Kubernetes namespace to run the job in (default: default)Job Name The name assigned to the Kubernetes job object Container Name The name assigned to the container when the image runs Command The command to run inside the container. Separate multiple values with a comma ( ,)Arguments The arguments to pass to the command. Separate multiple values with a comma ( ,)Volume Mounts Optional information about a volume that should be mounted for the task to process Name The name of the volume to mount Mount Path The mount path of the volume Claim Name The PVC name of the volume Resources Optional information about a volume that should be mounted for the task to process Request CPU The initial CPU allocation guaranteed to each pod Request Memory The initial memory allocation guaranteed to each pod Limit CPU The maximum CPU each pod may consume Limit Memory The maximum memory each pod may consume Pods to Complete The number of successful pod completions required (default: 1)Parallel Executions The number of pods that may run concurrently (default: 1) -
Select the Save button. The job is added to the schedule.
FAQs
How do I pass multiple commands or arguments?
Separate multiple values with a comma (,). For example, to pass two arguments, enter --config,/etc/app/config.yaml in the Arguments field.
What is the difference between Pods to Complete and Parallel Executions?
Pods to Complete sets the total number of successful pod runs required before the job is considered finished. Parallel Executions sets how many of those pods can run at the same time. For example, setting Pods to Complete to 4 and Parallel Executions to 2 runs two pods at a time until four have completed successfully.
What happens if a pod exceeds its CPU or memory limit?
Kubernetes terminates any pod that exceeds its memory limit. CPU throttling applies when a pod exceeds its CPU limit. Set limits high enough to avoid unexpected pod terminations.
Can I use OpCon global properties in task fields?
Yes. Global properties using the [[property_name]] token syntax are supported in all task configuration fields.
Glossary
Image — A packaged container image stored in a Docker Registry that defines the runtime environment and application code for the pod.
Namespace — A Kubernetes isolation boundary that logically separates workloads within a cluster. Jobs submitted to a namespace are only visible to and affected by resources within that namespace.
Pods to Complete — The Kubernetes job completion count. OpCon waits until this many pods have finished successfully before marking the job as complete.
Resource requests — The minimum CPU and memory that Kubernetes guarantees to a pod. The cluster scheduler only places a pod on a node that has at least this much capacity available.
Resource limits — The maximum CPU and memory a pod may consume. Kubernetes enforces limits by throttling CPU and terminating pods that exceed memory limits.
