Agent Definition

All definitions can only be performed using Solution Manager.

Once the sma.acs.FiservDNA plugin has been registered with the OpCon system, it will be possible to perform agent definitions.

One of the features of the ACS FiservDNA implementation is that all configuration data is maintained within the OpCon environment and the ACS FiservDNA implementation uses this information to create unique file instances for each execution.

• SMARunDNAJob.ini file
• SMAOracleConnection.ini file
• environment.txt file
• SMAErrorWordsFile.txt

The environment.txt file and the SMAErrorWordsFile.txt information are stored as FiservDNA scripts, while the information for the SMARunDNAJob.ini and SMAOracleConnection.ini files are defined when configuring the ACS FiservDNA connector.

The ACS FiservDNA implementation also makes use of OpCon batch users to provide the required user and passwords for the network drive mappings, the SQT user and the Oracle user inserted into the SMAOracleConfiguration.ini file.

Before defining an agent connection, the appropriate scripts and batch users should be defined.

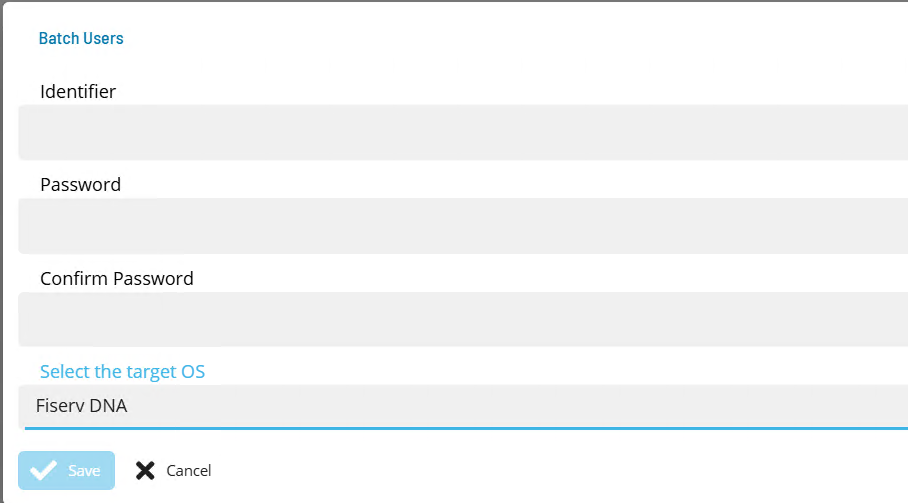

Defining FiservDNA Batch Users

The ACS FiservDNA integration requires the following batch users:

• Each user associated with a Network Drive Mapping.
• The SQT user.
• The Oracle User.

1. Open Solution Manager.
2. From the Home page select Library
3. From the Security Menu select Batch Users.
4. Select +Add to add a new Batch User.
5. Select Fiserv DNA from the Select the target OS drop-down list.
6. Enter the User name that will be used to create the token in the Identifier field.
7. Enter the password of the defined API User in the Password and Confirm fields.
8. Select Save.

Defining FiservDNA Scripts

The ACS FiservDNA implementation uses two scripts to provide the environment.txt and SMAErrorWordsFile.txt files for each task execution. These scripts are requested during the ACS agent definition and the contents of each script is passed during task startup to enable the creation of unique files for each task.

Use existing environment.txt and SMAErrorWordsFIle.txt files from an existing FiservDNA legacy connector to provide the contents of each script.

Using Solution Manager

• Select Library.
• Select Scripts.
• Select Script Types from the upper right hand corner.
  • Select +Add
  • In the Name field enter Fiserv DNA.
  • In the File Extension field enter txt.
  • In the Description field enter Used for ACS FiservDNA Integration.
  • Select Save.
• Select Script Runners from the upper right hand corner.
  • Select +Add
  • In the Name field enter Fiserv DNA.
  • In the OS field select Fiserv DNA from the drop-down list.
  • In the Type field select Fiserv DNA from the drop-down list.
  • In the Command field enter cmd.exe /c.
  • Select Save.
• Select Scripts from the upper right hand corner.
  • Create the Connector.config script.
  • Select +Add.
  • In the Name field enter a name for the script. It is suggested using the proposed agent name and append env to the name.
  • In the Type field select Fiserv DNA from the drop-down list.
  • Assign the required roles.
  • In the Script paste the contents of the environment.txt file.
  • Select Save.
• Select Scripts from the upper right hand corner.
  • Create the Connector.config script.
  • Select +Add.
  • In the Name field enter a name for the script. It is suggested using the proposed agent name and append errorwords to the name.
  • In the Type field select Fiserv DNA from the drop-down list.
  • Assign the required roles.
  • In the Script paste the contents of the SMAErrorWordsFIle.txt file.
  • Select Save.

Defining ACS Fiserv DNA Agent

The Agent definition defines the information that is included in the generated SMARunJobDNA.ini file.

This is done by adding a new ACS Fiserv DNA Agent definition using Solution Manager.

Items defined in red are required values (note : global properties are supported).

1. Open Solution Manager.
2. From the Home page select Library
3. From the Administration Menu select Agents.
4. Select +Add to add a new agent definition.
5. Fill in the agent details
   • Insert a unique name for the connection.
   • Select Fiserv DNA from the Type drop-down list.
   • Select General Settings
   • Check that the NetCom Name is set to Default or the SMA Relay name if Relay is being used.

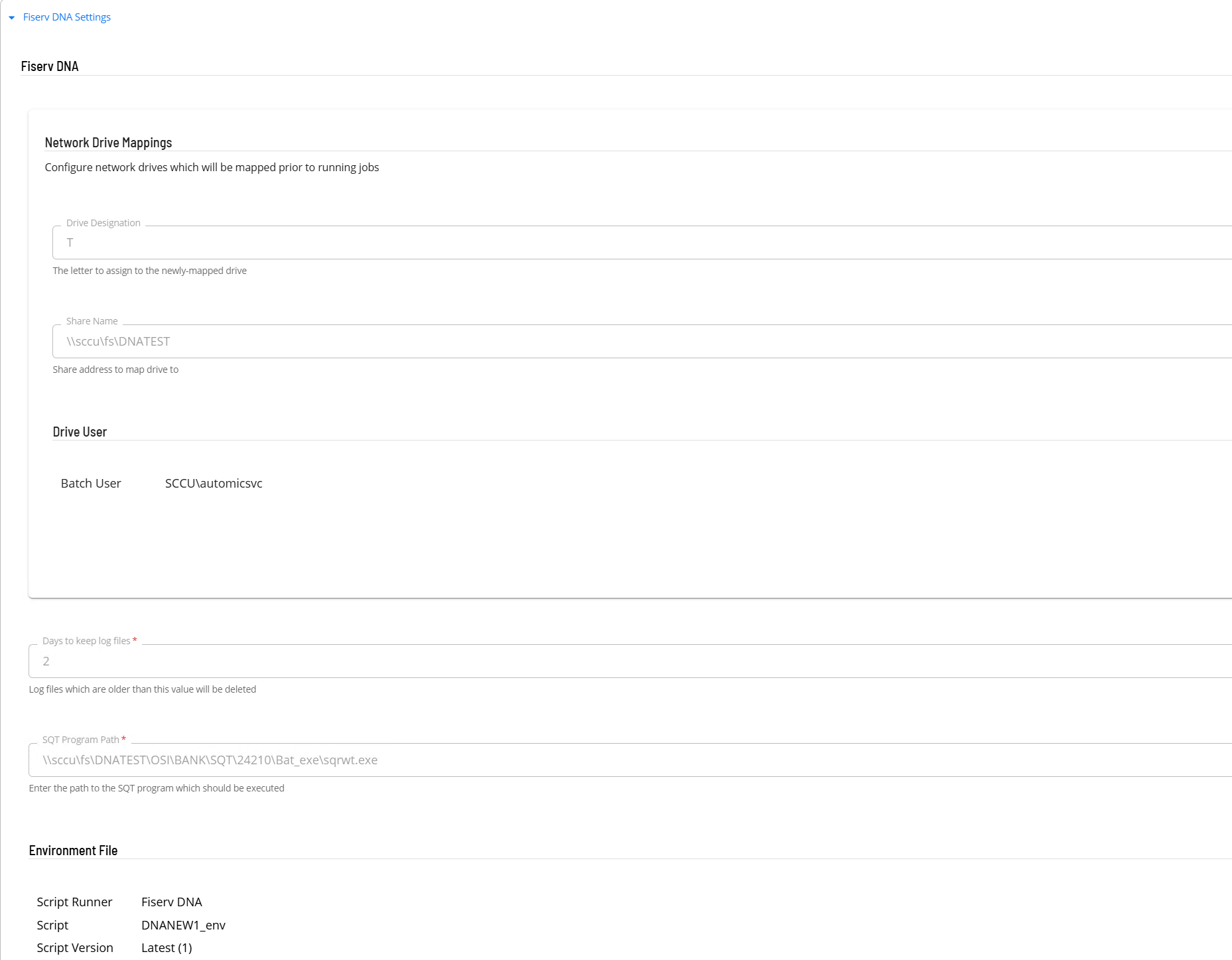

   • Select Fiserv DNA Settings
   • In the Network Drive Mappings section enter the drive mappings.
     • In the Drive Designation field enter the letter assigned to the mapped drive.
     • In the Share Name field enter the address of the drive mapping.
     • In the Drive User field select the batch user to be used for the drive mapping.
   • In the Days to Keep Log files field enter the vault indicating how long log files should be retained.
   • In the SQT Program Path field enter the path to the SQT program which should be executed.

• In the Environment File section select the script containing the environment information.

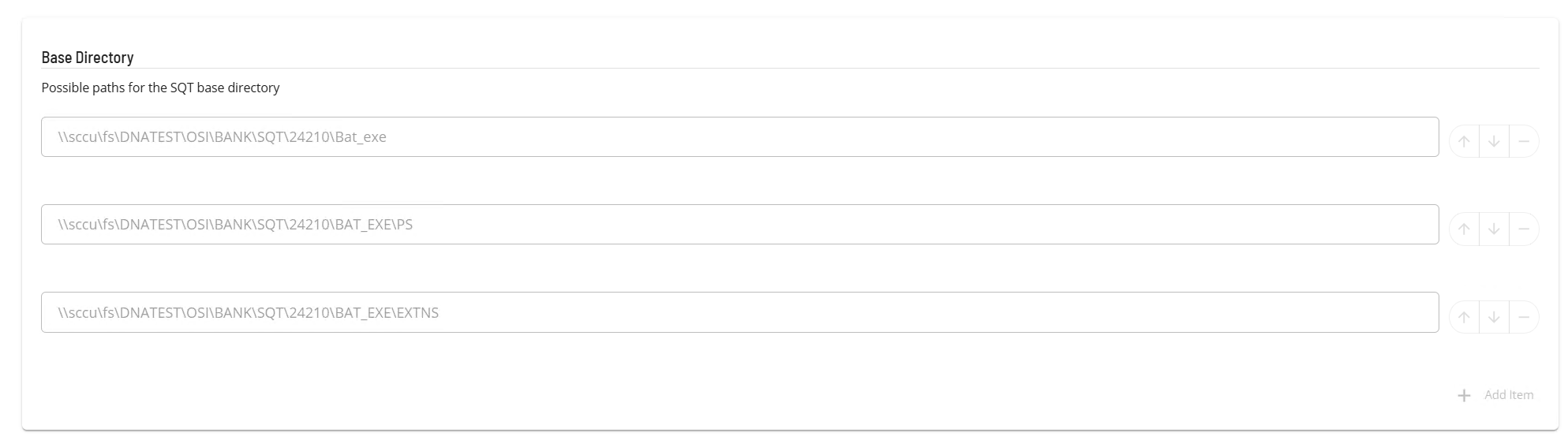

• In the Base Directory section enter the possible paths for SQT base directory.
• Use the + AddItem button to add values.

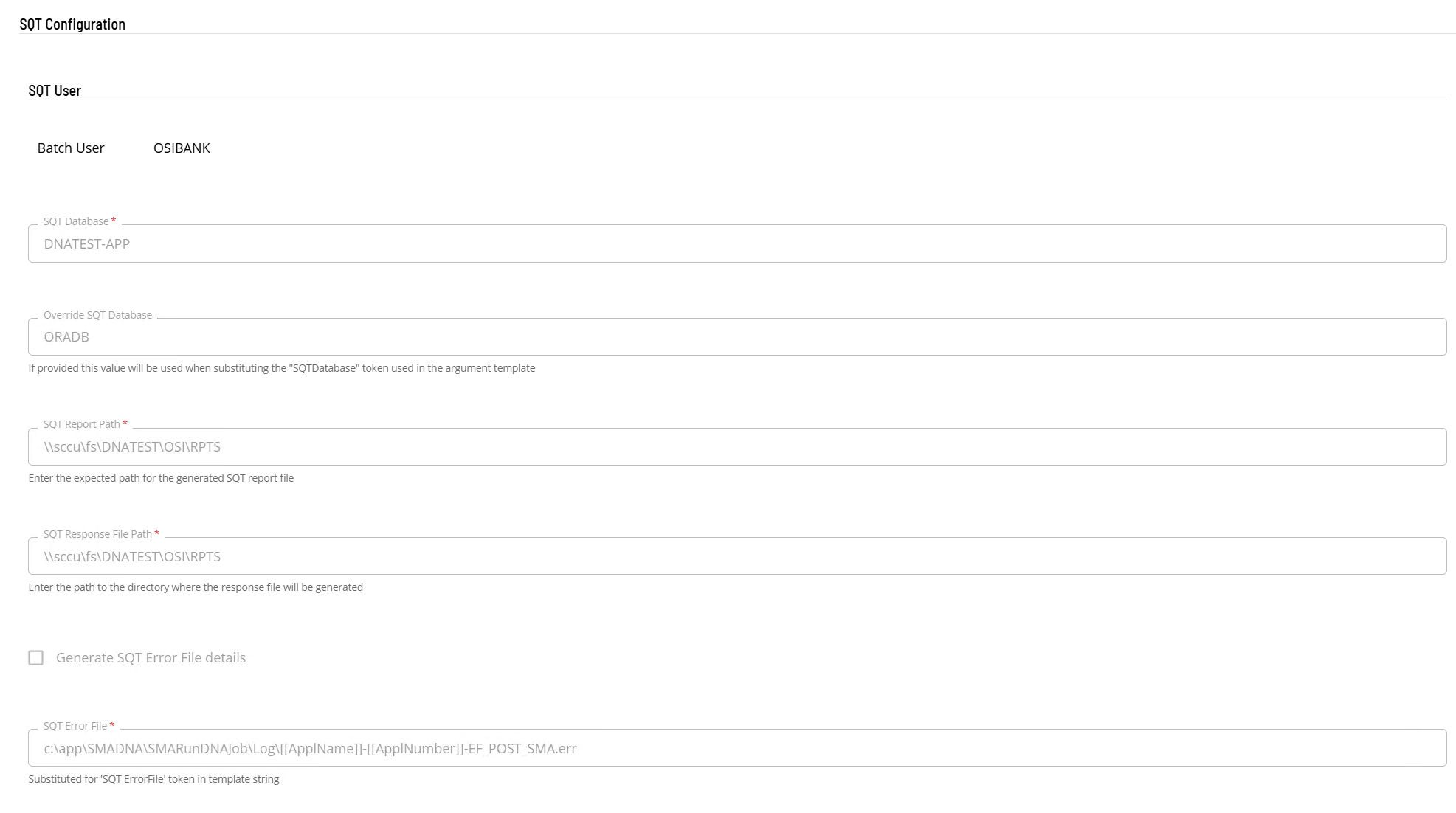

• In the SQT Configuration section enter the SQT information.
  • In the SQT User field select the batch user to be used for SQT.
  • In the SQT Database field enter the SQT database name.
  • In the Override SQT Database field enter the override SQT database name.
  • In the SQT Report Path field enter the expected directory for the generated SQT report file.
  • In the SQT Response File Path field enter the path to the directory where the response file will be generated.
  • If required, select Generate SQT Error File details.
  • In the SQT Error File field enter the template string.

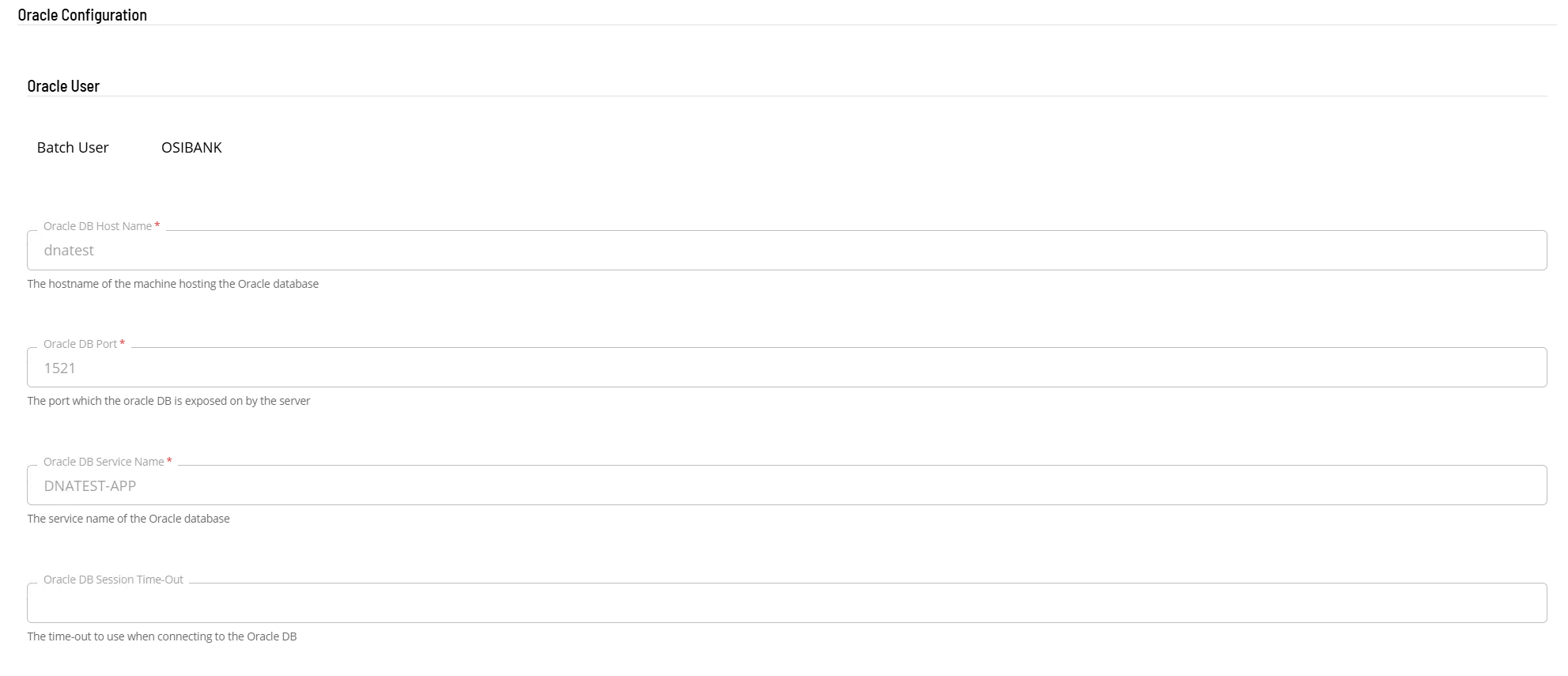

• In the Oracle Configuration section enter the information used to generate the SMAOracleConfiguration.ini file.
  • In the Oracle User field select the batch user to be used for the Oracle configuration.
  • In the Oracle DB Port field enter the port on which the Oracle database is exposed.
  • In the Oracle DB Service Name field enter the service name of the Oracle database.
  • In the Oracle DB Session Time-Out field enter a time out value to use when connecting to the Oracle database.

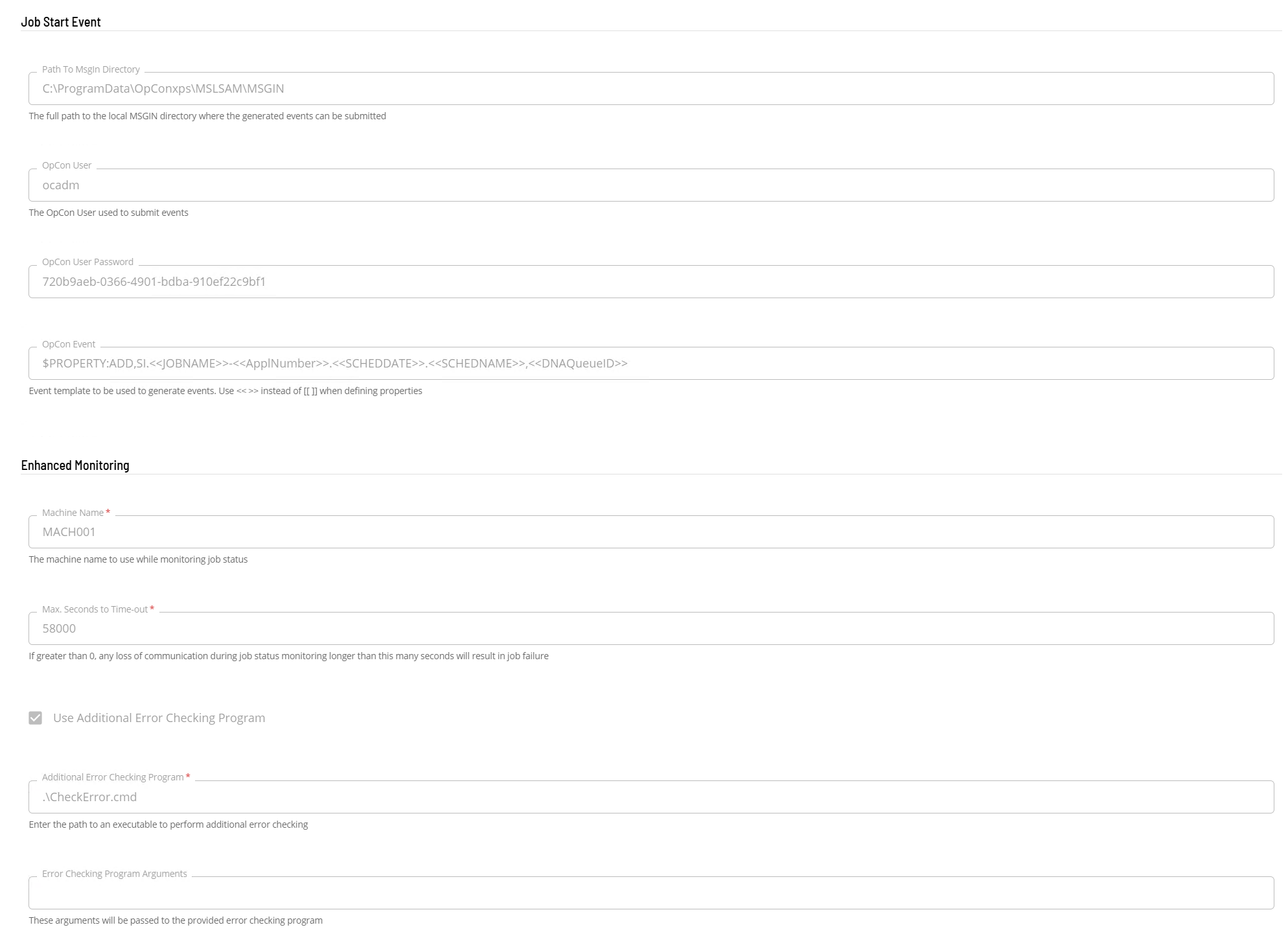

• In the Job Start Event section enter the information used to submit events to OpCon.
  • In the Path To Msgin Directory field enter the path to the msgin directory of the an associated Windows Agent.
  • In the OpCon User field enter the OpCon user that will be used to submit the event.
  • In the OpCon User Password field enter the external token of the OpCon user that will be used to submit the event.
  • In the OpCon Event field enter the event template to be used. If OpCon properties are defined in the template definition use << >> pairs instead of [[ ]].
• In the Enhanced Monitoring section enter the enhanced monitoring information.
  • In the Machine Name field enter the name of the machine to use while monitoring.
  • In the Max seconds to Time-out field enter the timeout value.
  • If required, select Use Additional Error Checking Program.
  • In the Additional Error Checking Program field enter the path to an executable to perform the additional error checking.
  • In the Error Checking Program Arguments field enter arguments that will be passed to error checking program.

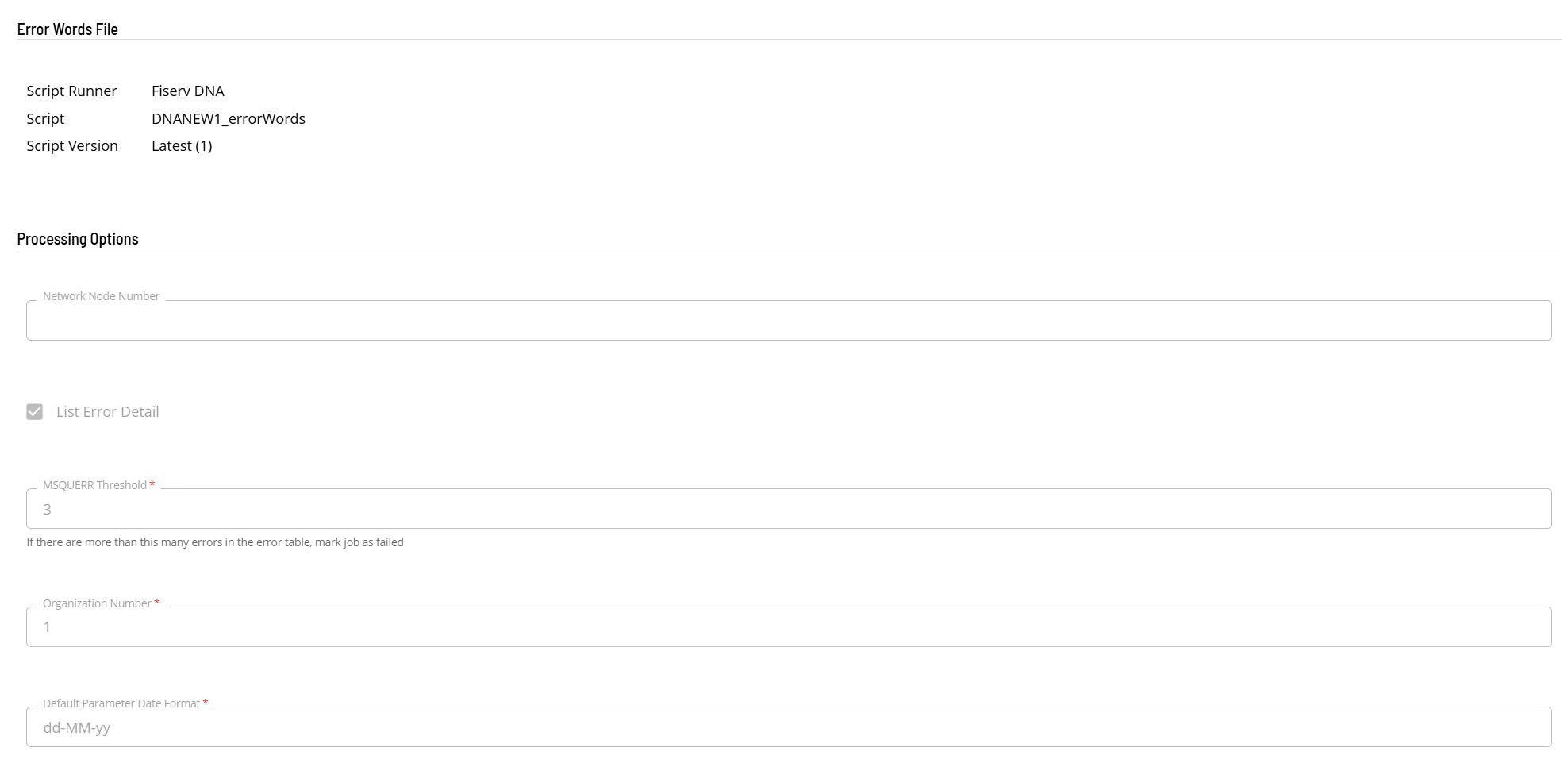

• In the Error Words File section select the script containing the error words file information.
• In the Processing Options section enter the processing option information.
  • In the Network Node Number field enter the node number.
  • If required, select List Error Detail.
  • In the MSQUERR Threshold field enter the number of errors in the error table to mark a job as failed.
  • In the Organization Number field enter the organization number.
  • In the Default Parameter Date Format field enter the default date definition.

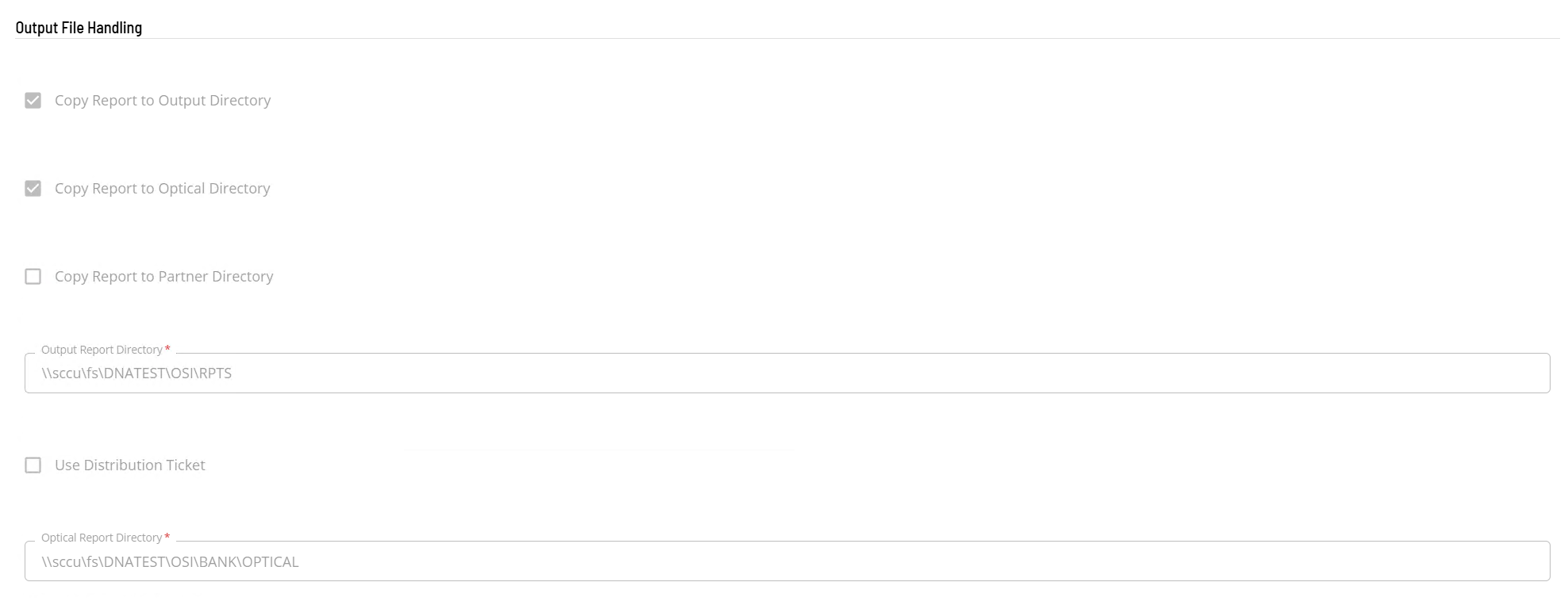

• In the Output File Handling section enter the output file handling information.
  • If required, select Copy Report to Output Directory.
  • If required, select Copy Report to Optical Directory.
  • If required, select Copy Report to Partner Directory.
  • In the Output Report Directory field enter the directory information.
  • If required, select Use Distribution Ticket.
  • In the Optical Report Directory field enter the directory information.

6. Save the definition changes.
7. Start the connection by selecting the Change Communication Status button and selecting Enable Full Comm..
