Variables​

Variables in VisualCron are dynamic placeholders that allow you to reuse and adapt data across tasks and jobs. Instead of hardcoding values like file paths, usernames, or passwords, you define them once as variables and reference them wherever needed. This approach improves maintainability, reduces errors, and simplifies updates.

Warning

Note that the syntax of a VisualCron variable and an OpCon variable differ significantly!

VisualCron variable syntax: {VarType(VarName)}

  • Example: {USERVAR(TestVar)}

OpCon variable syntax: [[VarName]]

  • Example: [[TestVar]]

Variable Types​

Job Variables​

Defined within a specific job. Can be referenced inside or outside the job. Created/edited via the Edit Job screen. Stored locally to the job but visible in the Variables browser.

Global Variables​

Accessible across all jobs. Managed from the main menu: Server > Global objects > Variables. Useful for shared values like environment paths or credentials.

System Variables​

Automatically populated with system-level data (e.g., memory usage, uptime). Useful for logging, monitoring, or conditional logic.

Date/File Variables​

Provide formatted date/time or file-related data. Can be customized using delimiters and formatting functions.

Using Variables​

  • Most fields in VisualCron support variables. If a field turns light blue when dragging a variable over it, it accepts variables.
  • Use the Variables button in the status bar or the Job > Main Settings > Job Variables section.
  • Use curly braces {} to insert variables, e.g., {USER(username)}.
  • You can override job variables using the Job/Task Control Task.

Use in API Calls and Return Variables​

  • Use tokens and job IDs as variables in API calls.
  • Capture return values using JobVariableValue/Get endpoints.

User-defined Variable Example​

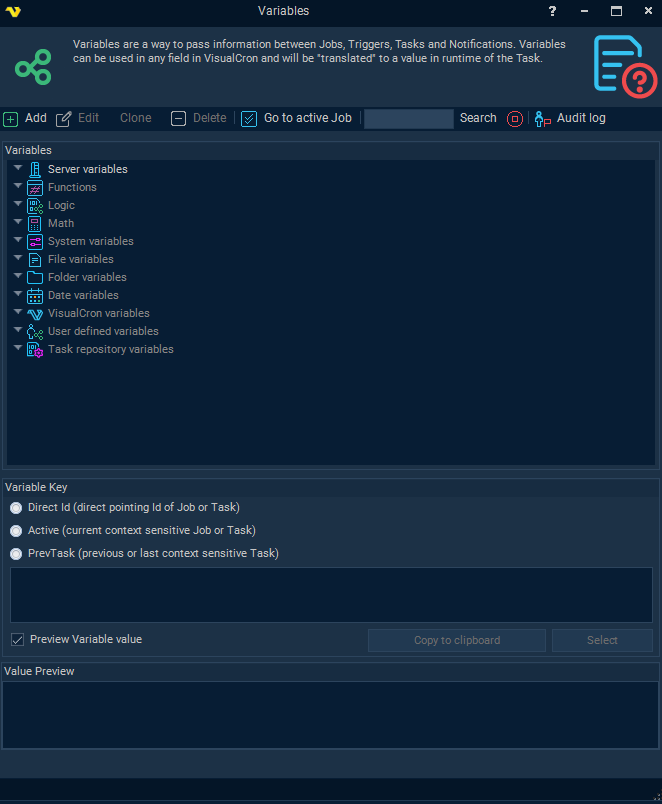

  • Add a User-defined Variable by clicking the Variables tab in the bottom of the Job screen
  • Click Add to Add a User-defined Variable

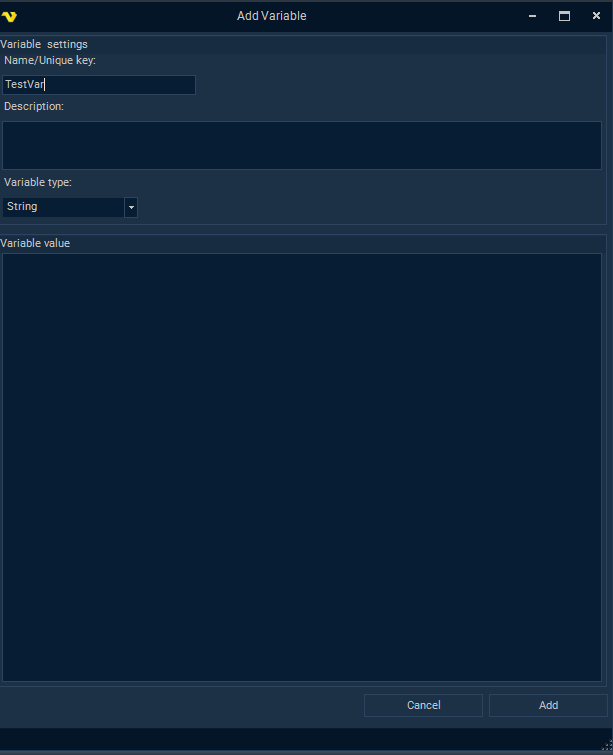

  • Name and configure the User-defined Variable

  • In the Variable list screen, notice the context and syntax of the new User-defined Variable
